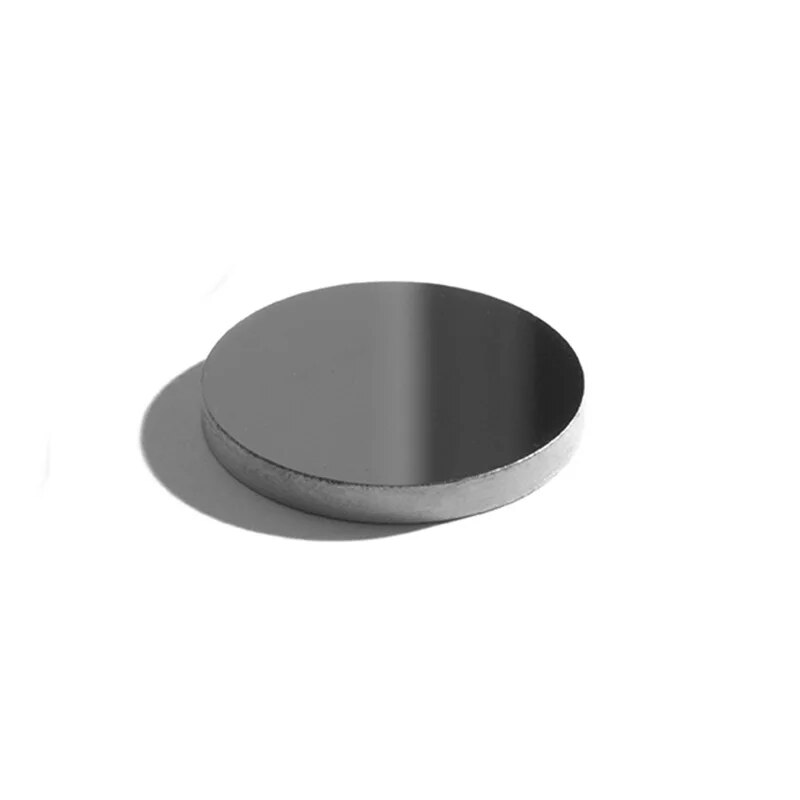

Co2 Laser Laser Cut Mirrors Mo Plated Reflective Lens for Cuting Machine 10.6um 400W Dia20/25/30/38.1mmMirrored Lenses Engraver
Diameter（mm ）
19.05
20
25
30
38.1
Thickness（mm）
3
3
3
3
5
Material
Mo (Molybdenum)
Diameter
19.05/20/25/30/38.1mm (optional)
Thickness
3/5mm
Wavelength
10.6um
Transmittance
＞99.2%
Shape
Plane
AR/AR coating
R < 0.5% per surface
Clear Aperture
>90%
Surface Quility
40-20 scratch and dig
Surface Flatness
< λ/2 @ 632.8nm
Centration
< 3 arc minutes
Compatible Power
40~200W
Features:
1.Gold-Plated Mo
Made by multiple processes;Superb coating art,Precision Mo polishing and grinding processes,Excellent optical properties,High working efficiency,Long working life. Good replacement for the K9 mirror and Si mirror.
2.The Mo reflective mirrors are made of Molybdenum.Precision slicing polishing and grinding processes;Uncoated, extremely tough surface,Resistance to wipe;Excellent heat resistance;Adapt to work under harsh environment;Excellent optical properties,High working efficiency,Long working life.
3.These mirrors are designed specifically for CO2 laser engraving and cutting, providing precise and accurate reflection to ensure that your engravings and cuts are of the highest quality.
4.Whether you're a professional engraver or a hobbyist, these reflective mirrors are an excellent choice. Order now and take your CO2 laser engraving to the next level!
If need unlisted size or not sure , please contact customer service, we will answer quickly.
